Android Interface Navigation for Lexus ES 250/300h/350/ 00 2013-2018, Video Integration
Standard hardware equipment:
Android 6.0 system, 2GB RAM, 16GB Flash, Quad core 1.6GHz, A9 structure, online download music to outside USB disk.
Display equipment:
1.HD digital LVDS signal output which could transmit high quality image.
2.Highly familar origin Lexus car UI, easy and convenient to operate.
upgrade function:
1.Support 4k video play.
2.Support 2 way video output.
3.Support high quality music (WAV etc ).
4.Fully plug & play!
5.Mirrorlink (Android & iOS device).
6.On line map(Google/waze); Off line map (Igo).
7.Online YouTube random play and browsing, no limits.
8.Support TV input, outside video input, sound and image synchronise HD display.
9.Download any apps from Google play store and play, no need to worry about internal massive storage space.
10.Origin car mic voice command system, automatic detective.
11.DVR/ADAS (USB video recorder, support storage and play, ADAS support track deviations, car ignition alarming, distance and speed remind), it's a optional accessory, have to fit with our side DVR.
12.Switch by origin accessory, from AUX to Android, for non AUX version, long press the off phone button to switch to Android system. You could also switch different music track and volume by steering wheel.
13.Android OS: we use knob, mouse or touchpad to control every part of system, the system could also be operate by resistive and capacitive touch screen with multi fingers
14.Highlight function: random map setting is supported, front rear left right cameras signal input is supported, Lexus origin rear view system is supported, could activate side view camera by turning steering wheel or turning light. Install and uninstall apps, MCU cloud update and other features.
Product acessories:

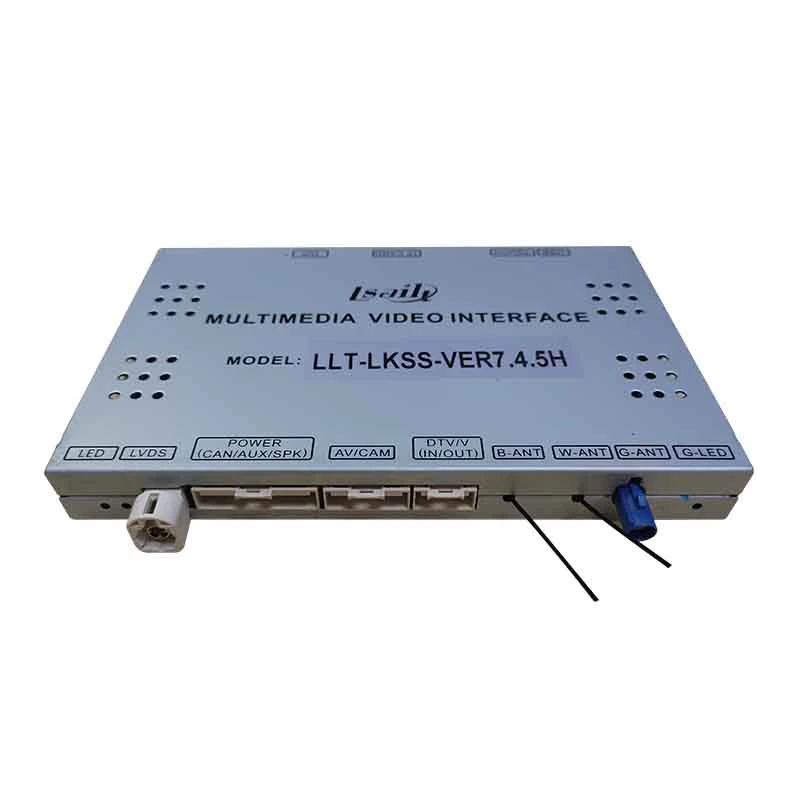

1.Video interface box 1 piece
2.Specially use power cable 1 piece.
3.GPS antenna cable 2 pcs
4.CAN connector 1 piece
5.Video output cable 1 piece
6.USB connector cable 1 piece
7.Touch connector cable 1 piece
8.Small speaker 1 piece (low equip model no have)
9.LVDS connector cable 1 piece
10.Screen display cable 1 piece (different on left & right hand drive model)

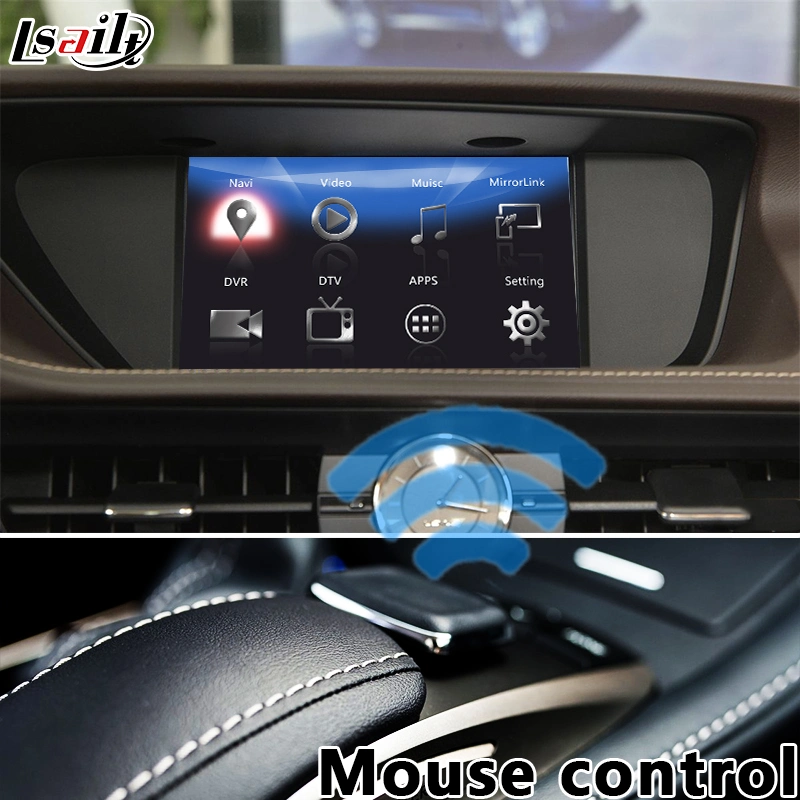

Lexus Mouse/Touchpad Control Description
| Support Car Models: 2013-2018 year ES/ 2013-2018 year RX/ 2013-2017 year IS/ 2014-2017 year NX/ 2013-2016 year LS/ 2016-2018 year LX/ 2012-2018 year GS | |||
| Android Configuration | |||
| Resolution: | 800X480 and 1280X480(8/10.25/12.3") | Display: | LVDS Digital |
| SYSTEM: | Android OS9.0 | RAM: | 2/3GB |
| ROM: | 32GB | CPU MODEL: | T7 |
| WIFI: | Yes | BT: | Yes |
| MirrorLink: | Android and IOS 13 | Play Store: | Yes |
| Youtube: | Yes | Quad core | 1.2GHz-1.6GHz |
| Hardware Configuration | |||
| TF Card : | Maps | ||
| Android sound: | Original car | ||
| Navi Sound: | use small speakers | ||
| AV IN: | DTV and AV1 | ||
| V OUT: | V and V1 | ||
| Camera: | Front/Left/Rear/Right(guideline and radar ) | ||
| Use Operation: | Mouse/ Touchpad operating | ||
| Special Function | |||
| MCU and APP Update: | Connect WIFI Using Internet | ||
| Cold start Time: | 40 seconds | ||
| Hot Start: | 6 seconds | ||
| Sleep: | Yes(Loop 5 times) | ||
| Sleep memory: | Remember Last APP in parking | ||
| Installation Method: | Plug and Play | ||
| Day and Night mode: | AUTO | ||
| Safe Driving: | Driving automatically closes video image(4S VER) | ||
| Switching Method | |||
| Switch Mode1:(recommend) | In radio or other screen select AUX automatically switch android(Image and sound) | ||
| Switch Mode2: | Use panel media button to cycle through Switch | ||
| Switch Mode3: | Use steering wheel MODE button to cycle through | ||
| Switch Mode4: | Use original car radio or other screen: Long press the off phone button for 3 seconds to switch Android | ||
| Switch Mode5: | Use the meter to select AUX to enter automatically | ||
| Body Multimedia Control | |||
| Microphone: | Use original car | ||
| Steering Wheel: | Support up and down song, Vol | ||
| Forced Reset: | MODE and Up Song(Long press 5 seconds) | ||
| Original Car BT in Android: | Incoming call will back to original car Bluetooth image . | ||
| A/C DISP | Support in the Android interface display | ||
| Speed Control: | Add CAM 20 km Effective | ||
