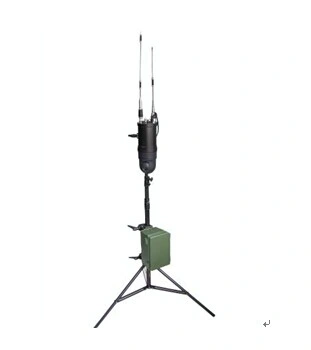

Introduction:
The portable repeater is developed with the latest technologies of COFDM modulation and MPEG-2 video compression. This equipment can realize wireless transmission with high definition video and stereo audio. Especially, in the urban and mountainous environments, the portable repeater is the ideal solution for the NLOS (non line-of-sight) transmission. Since its powerful function and it is easy to be carried and installed everywhere, the repeater has many application fields such as: Broadcasting, Military, Public Security, Forest Fire Prevention, Firefighting, Oil and Gas Industries, Traffic Police, Disaster Management, Railway.
Main Features:
Inset high-performace amplifier
Lithium battery for power supply
Convenient to be carried and installed
COFDM modulation and MPEG-2 video compression
Great security by encryption of AES 128 bit/ALLTECH Basic Scrambling
Good transmission with high definition image and stereo audio
Adjustable working frequency, LCD board displays the working frequency
Firm aluminium enclosure with built-in cooling fans, waterproof and shockproof
Stable transmission in NLOS(non line-of-sight)and high speed mobile condition.
Transmission range can be up to 100km in LOS(line-of-sight)environment
Product Application:

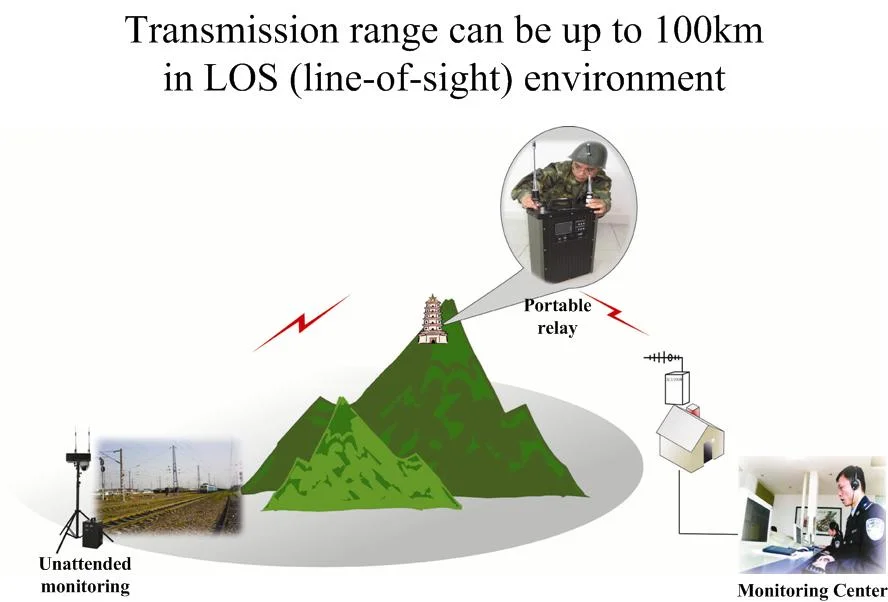

For the wireless transmission system, if there are high buildings and mountains between the first responder and the receiving center, the transmission quality is easy to be disturbed. We can use the portable repeater to relay the camera's output signals from the first responder to the commanding center.
Repeater Specification:
Rack Mount Receiver Series:
MV2025RJ7-A Rack Mount Video Receiver with Duplex-audio
Functions & Features:
Specifications:
The portable repeater is developed with the latest technologies of COFDM modulation and MPEG-2 video compression. This equipment can realize wireless transmission with high definition video and stereo audio. Especially, in the urban and mountainous environments, the portable repeater is the ideal solution for the NLOS (non line-of-sight) transmission. Since its powerful function and it is easy to be carried and installed everywhere, the repeater has many application fields such as: Broadcasting, Military, Public Security, Forest Fire Prevention, Firefighting, Oil and Gas Industries, Traffic Police, Disaster Management, Railway.
Main Features:
Inset high-performace amplifier
Lithium battery for power supply
Convenient to be carried and installed
COFDM modulation and MPEG-2 video compression
Great security by encryption of AES 128 bit/ALLTECH Basic Scrambling
Good transmission with high definition image and stereo audio
Adjustable working frequency, LCD board displays the working frequency
Firm aluminium enclosure with built-in cooling fans, waterproof and shockproof
Stable transmission in NLOS(non line-of-sight)and high speed mobile condition.
Transmission range can be up to 100km in LOS(line-of-sight)environment
Product Application:
For the wireless transmission system, if there are high buildings and mountains between the first responder and the receiving center, the transmission quality is easy to be disturbed. We can use the portable repeater to relay the camera's output signals from the first responder to the commanding center.
Repeater Specification:
| Rx Frequency | 170MHz~860MHz |
| Rx Bandwidth | 6/7/8MHz, 2.5/1.25MHz(optional) |
| Rx Setting Frequency | 170MHz~860MHz |
| Rx Sensitivity | ≤-105dBm @ 1.25MHz; ≤-94dBm @ 8MHz |
| Rx Default Frequency | 300MHz~450MHz |
| Rx Voltage Output | DC12.5V±0.5V |
| Rx Current Output | 400mA(MAX) |
| Tx Frequency | 550MHz~810MHz |
| Tx Bandwidth | 6/7/8MHz,2.5/1.25MHz(optional) |
| Tx Setting range | 560MHz~760MHz |
| Tx Default frequency | custom-made |
| Tx Power Output | 27.5dBm~29.5dBm |
| Tx Flatness | ≤1dB @ 8MHz |
| Tx CNR | ≥28dB @ 27.5dBm power output |
| Second Harmonic | ≤-43dB |
| Encryption: | AES 128 bit / ALLTECH Basic scrambling |
| RS232 serial port for configuration | |
| Battery | 14.8VDC/32AH(6 hours continuous working time ) |
| DC Input | DC12.5V~DC16.8V |
| Working Current | ≤3.5A@DC12.5V |
| Dimension | 360mm*268mm*127mm |
| Weight | 9.5 kg (including the battery) |
Rack Mount Receiver Series:
MV2025RJ7-A Rack Mount Video Receiver with Duplex-audio
Functions & Features:
- Working frequency directly display on panel
- Power off memory
- Data transmission
- Receiver controlled by PC or display panel
- Conference microphone input and MIC audio input
- GFSK digital audio transmission modulation
- Narrow audio transmission bandwidth and good channel utilization
- Digital audio decoding, good voice quality and internal en/decryption
- Audio frequency adjustable with 64 channels
- Audio sent time controllable to reduce power consumption subject to situation
- Audio sensitivity adjustable with useless noise shielding
- A/V signal simultaneously output
- One-channel video output with BNC connector and two-channel audio output
- ABS decryption on received A/V signal
Specifications:
| Power Supply | ||
| Working voltage V | AC220V±20V | |
| Working current A | ≤1.5A@DC12.5V (if audio transmission is off) | |
| ≤7A@DC12.5V (if audio transmission is on) | ||
| Video Receiving | ||
| Frequency receiving range | 170~860MHz or user customized | |
| Frequency bandwidth | 6/7/8MHz or 1.25/2.5MHz adjustable | |
| Receiving sensitivity | -96dBm~-20dBm@8M/-106dBm~-20dBm@1.25M | |
| Demodulation | COFDM | |
| Video decoding | MPEG-2/MPEG-4 compatible | |
| Decoding | AES/ALLTECH Basic Scrambling | |
| Constellation | QPSK/16QAM @ 1.25/2.5MHz QPSK/16QAM/64QAM @ 6/7/8MHz | |
| FEC | 1/3, 2/3 @ 1.25/2.5MHz 1/2, 2/3, 3/4, 5/6, 7/8 @ 6/7/8MHz | |
| Carrier | 2K | |
| GUI | 1/8, 1/16 @ 1.25/2.5MHz 1/4, 1/8, 1/16, 1/32 @ 6/7/8MHz | |
| Video output level | 1~1.2Vp-p@75Ω | |
| Video output format | PAL/NTSC | |
| Video white bar amplitude | 650~720mV | |
| Video synchronous amplitude | 260~275mV | |
| Video amplitude-frequency characteristic dB | 0~4.8MHz | -0.5~1.5 |
| 5.5MHz | -4.0~1.5 | |
| Rx feed output voltage | DC10V~DC12V | |
| Rx feed output current | 800mA/CH (MAX) | |
| Audio output | Left/right channel, stereo | |
| RS232 control interface | Standard RS232 level, 9600, 8, N, 1 | |
| RS232 data interface | Standard RS232 level, support 1200~115200 | |
| Audio Transmission | ||
| Audio Tx frequency | 470.5~479.950MHz, factory setting: 479.950MHz | |
| Audio Tx power output | ≥40dBm | |
| Audio Tx modulation | GFSK | |
| SHG | >62dBc | |
| Frequency interval | 150KHz | |
| Audio decoding overall bitrate | 4800bps | |
| Audio sample | 8KHz 16bit | |
| Audio Tx delay | 1~60 S | |
| Audio input signal strength | 320mVpp (MAX) | |
| Environment | ||
| Working temperature | -25°C~55°C | |
| Storage temperature | -40°C~70°C | |
| Aapearance | ||
| Dimension | 482mm×280mm×44mm (1U case) | |
| Weight | 4.8kg | |
